Infrared Choj Pom Tej Tshuab
Khoom Description

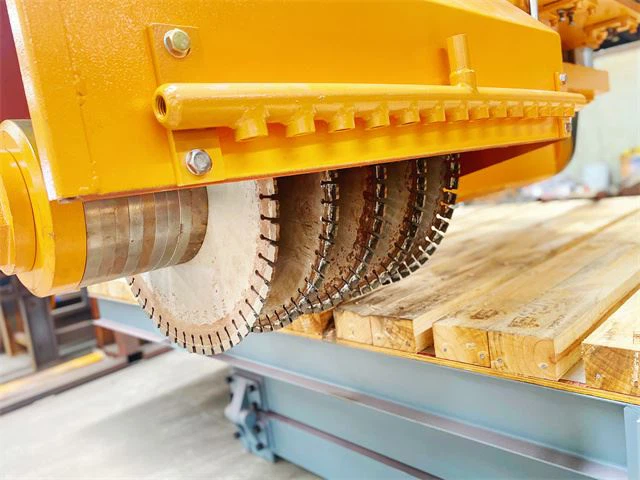

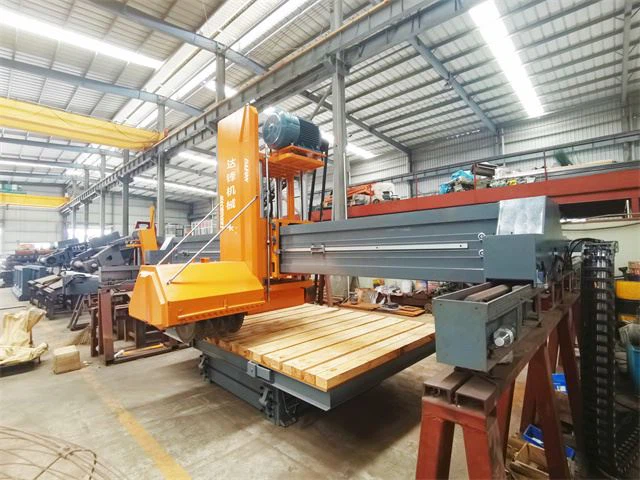

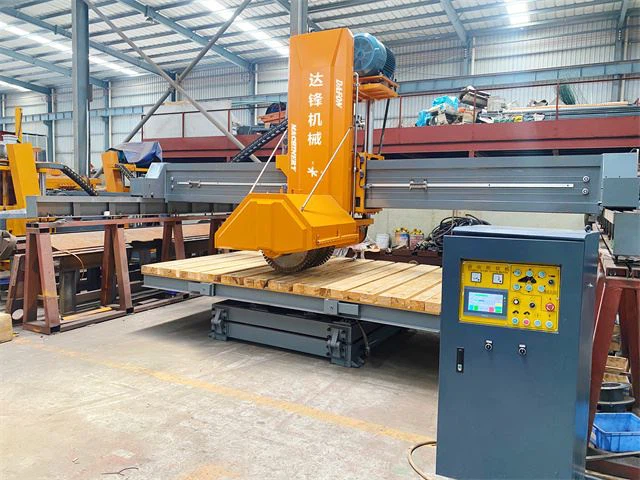

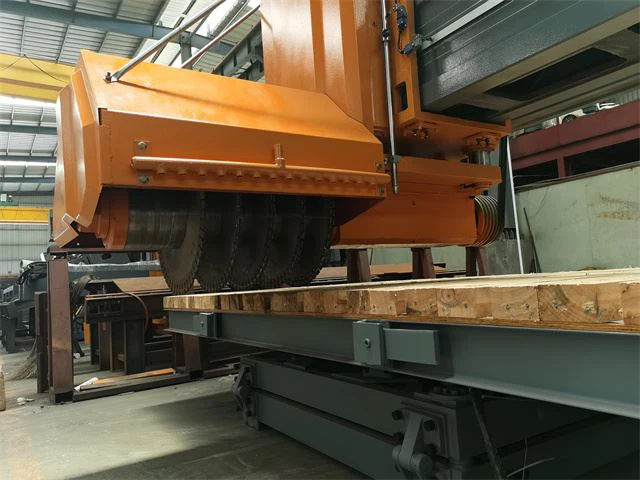

Infrared multi-blade granite cutter yog ib hom pob zeb txiav cov cuab yeej nrog kev ua haujlwm siab, siab precision, ua haujlwm yooj yim, kev nyab xeeb, thiab kev ntseeg tau. Qhov zoo ncej ntev yog 650mm, thiab nws tuaj yeem teem nrog 7 daim ntawm 600mm saws los yog 5 daim ntawm 800mm saw hniav. Siv cov thev naus laus zis thev naus laus zis, nws tuaj yeem txiav cov ntaub ntawv pob zeb sai thiab raug, xws li granite, marble, pob zeb slabs, vuas ceramic, thiab lwm yam.
Lub infrared multi-blade block cutter tshuab muaj qhov ua haujlwm siab-precision txiav, tuaj yeem paub txiav zoo, thiab lav qhov zoo thiab zoo nkauj ntawm cov khoom, thiab ntau rab riam txiav tuaj yeem ua kom cov zis ntau ntxiv. Nyob rau tib lub sijhawm, tus choj infrared ntug trimmer txais ib qho kev txawj ntse PLC tswj qhov system, uas yooj yim rau kev khiav lag luam thiab tuaj yeem ua tiav cov pob zeb txiav tsis muaj kev txawj ntse.
Technical parameters
|
Sau npe |
DF -800 |
Chav tsev |
|
Hniav txoj kab uas hla |
Ø500~800 |
mm |
|
Max. ntsug stroke |
600 |
mm |
|
Worktable tiling degree |
0~85 |
N degree |
|
Worktable rotating degrees |
0~90/0~360 |
N degree |
|
Max. txiav qhov tob |
280 |
mm |
|
Kev siv dej |
4 |
m³/h |
|
Main lub cev muaj zog |
37 |
kws |
|
Tag nrho lub cev muaj zog |
44 |
kws |
|
Zuag qhia tag nrho (L * W * H) |
6000*4800*3000 |
mm |
|
Qhov hnyav tag nrho |
5600 |
kg |
|
Worktable dimension |
3200*2000*240 |
mm |
Cov Khoom Paub meej
Cov khoom lag luam ntsig txog
Choj Cutter Tshuab
Kerbstone Tej Tshuab
Pob zeb Cutter Tshuab
Pob zeb Profileing tshuab
Peb lub Hoobkas
Shipping & Pab
| Peb muab cov kws tshaj lij thiab cov kws tshaj lij kev paub dhau los rau kev teeb tsa thiab kev pabcuam tomqab muag. | |
|
Kev Muag Khoom Ua Ntej * Kev nug thiab kev pab tswv yim. * Kho cov kab tshuab zoo tshaj plaws raws li cov neeg siv khoom * Saib peb lub Hoobkas. |
Kev Pabcuam Tomqab Muag * Kev cob qhia yuav ua li cas rau nruab lub tshuab, kev cob qhia siv lub tshuab. * Cov engineers muaj rau kev pabcuam tshuab txawv teb chaws. * Kev tu lub neej thev naus laus zis hauv cov khoom pub dawb thiab khoom seem. Yam khoom |
Ntim & Chaw thau khoom
Exhibition Shows
FAQ
Q: Cov ntaub ntawv dab tsi koj yuav tsum tau muab ua ntej koj hais?
A: Peb xav tau qhov loj ntawm lub pob zeb thaiv thiab lub Hoobkas thiab kev tsim khoom
Q: Koj qhov kev sib tw yog dab tsi?
A: Peb tuaj yeem muab kev pabcuam kev yuav khoom ib zaug. Peb lub tshuab muaj tus nqi zoo nrog qhov zoo tshaj plaws. Txhua lub tshuab muaj lub neej ua haujlwm ntev, muaj peev xwm ntau lawm, thiab raug. Tsis tas li ntawd, peb tuaj yeem xa tus engineer los pab cov neeg siv khoom yog tias lub tshuab tau teeb meem.
Q: Koj puas tuaj yeem pab peb xa peb cov khoom thauj?
A: tau kawg, peb tuaj yeem hais nqe CIF, FOB, thiab CIF nqi rau koj, yog tias koj xav tau
Q: Koj puas tuaj yeem muaj peev xwm kho tau?
A: Yog, peb muaj, peb tuaj yeem ua raws li koj qhov kev thov kho lub tshuab
Q: Koj lub tshuab muaj hom lus dab tsi?
A: Txhua lub tshuab muaj ob hom lus Suav thiab Askiv, Peb tuaj yeem ntxiv Lavxias, Saudi, Polish, Korean, thiab lwm yam raws li koj xav tau.
Q: Tom qab kuv yuav cov tshuab, kuv tuaj yeem nruab thiab ua haujlwm li cas?
A: Peb tuaj yeem cia peb tus engineer pab koj nrog kev teeb tsa thiab kev cob qhia,
Q: Yog tias kuv tsis xav tau koj tus engineer, kuv tuaj yeem nruab thiab khiav lub tshuab ntawm kuv tus kheej li cas?
A: Peb tuaj yeem xa koj daim duab qhia lub hauv paus thiab cov yeeb yaj kiab qhia rau kev teeb tsa. Peb muaj cov tshuab phau ntawv qhia koj yuav ua li cas khiav lag luam.
